LC-4004U Universal Line four channel amplifier

Main Features

- Small size, lightweight 4 channels amplifier
- Worldwide operational range of mains voltage
- Output power and sound quality are independent from
Mains changes in very wide range (85Vac -- 275Vac)
- Strong double resonant power supply with PFC
- High output power and good pulse response
- Built-in U / I / no-clip limiters
- Bridged configuration ability
- High power conversion efficiency ,low thermal emission
- Improved reactive power handling/recycling capability
- 2way selectable fixed frequency hi/low-pass crossover
- Intelligent protective functions
- Two steps of built-in High frequency protection
- Soft-start, line overvoltage protection, 400VAC proof
- Large internal energy storage
- Cooling fans are hidden deep in the case, less noisy
- Rugged steel chassis in compact size
- No need for cooling air jamming filters, non moisture sensitive
cooling structure design, "Tropicalized"
- Designed and manufactured in the European Union (HUNGARY)

Downloads

User Manual

Filter Settings

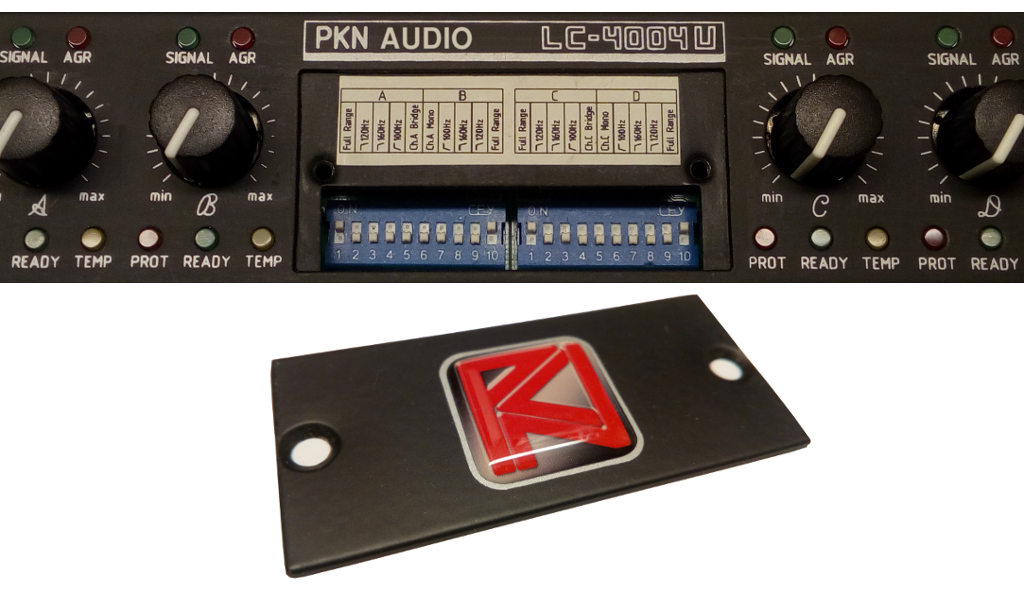

LC-4004U filters hidden under removable front plate


LC-4004U	4x 1000W 4Ω	4x 1600W 2Ω
LC-10004U	4x 2100W 4Ω	4x 2700W 2.7Ω

Technical Specifications

Parameter	PKN LC-4004U	PKN LC-10004U New!
Channel number	4 input / 4 output
Power requirements	85V - 270VAC, 45 - 56 Hz or 85V - 270VDC* (400Vac proof**)
Typical Mains requirement with music signal	12A (110Vac), 6A (230Vac) "Fuse type-B"	20A (110Vac) , 10A (230Vac) "Fuse type-B or C"
Min. mains operational Voltage (prior UVLO activated)	59Vac
Max. mains operational Voltage (prior OVLO activated)	290Vac
Soft starting	yes, very soft power-up sequence
Power Supply	High frequency resonant includes active PFC
Mains power factor	> 0.94 (above 250W)
Mains connection	25A Neutrik Powercon
Working temperature range	0C - 45C
Storage temperature range	-25C - 60C
Maximum Peak Output Voltage (per channel)	105Vp	155Vp
Output power @ 8 Ohms	4 x 500W	4 x 1200W
Output power @ 6 Ohms	4x 660W	4 x 1600W
Output power @ 4 Ohms	4 x 1000W	4 x 2100W
Output Power @ 2.7 Ohms	4x 1500W	4 x 2700W
Output power @ 2 Ohms	4 x 1600W	4 x 2600W
Bridged power @ 8 Ohms	2 x 2000W	2 x 5000W
Bridged power @ 4 Ohms	2 x 3000W	2 x 6000W
Minimal load impedance	2 Ohms
Frequency (+/- 3dB, 8 Ohms)	5 Hz - 36 kHz
Slew rate (Input HF filter bypassed)	50V / us
Damping factor ( 8 Ohm, range of 20Hz- 150Hz)	>2000	>2500
Output Peak Current (per channel)	44Ap	56Ap
End stages	PKN Improved fixed switching frequency Class D with true output feedback, reduced output HF carrier ripple circuitry

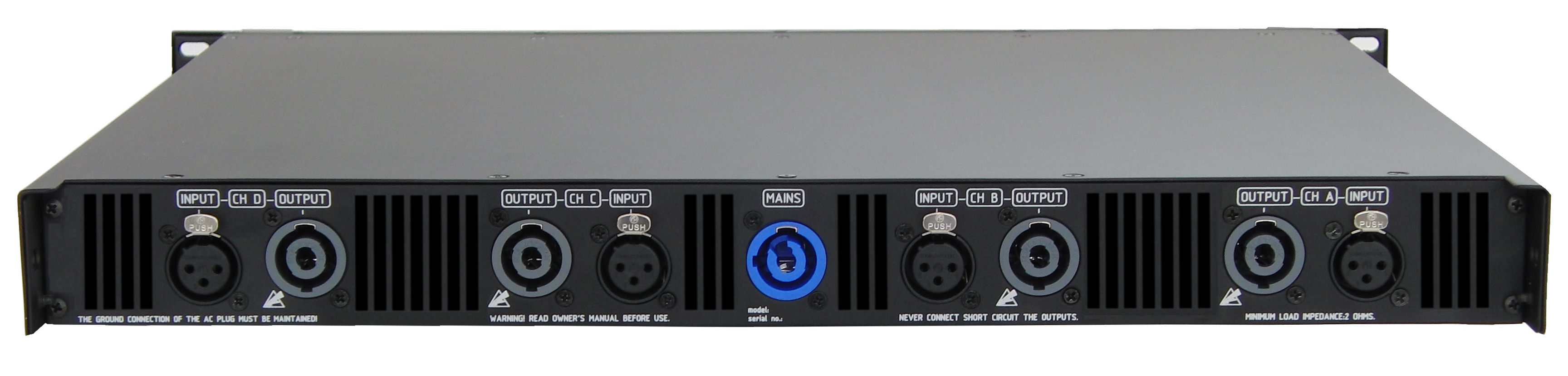

Output connection	Four pole Neutrik Speakon (1+2+ in parallel 1-2- parallel)
Effective sample rate per channel	250KS/s
Gain ( Front knobs at 0dB)	39dB	42dB
Signal to noise ratio	104 dB	106 dB
Nominal sensitivity for max. output level (balanced)	700 mV (rms)	1.1V (rms)
Input impedance (referred to ground)	10 kOhms + 10 KOhms ( +/- 1% )
Input terminals	Neutrik XLR
Built in limiters	Max. output level, output current, signal no-clip, sustained high-frequency, intelligent over temperature
Crossover	Selectable fixed frequency 100 Hz HI-PASS filter, 120 Hz LO-PASS filter, 160 Hz LO-PASS filter
Output level meters	SIGNAL, AGR, PROTECTION, TEMP, READY LEDs
Protections	Short circuit, Overload, Low impedance, thermal, DC fault, High-frequency
Cooling	Forced air cooling with regulated, temperature dependent DC fans hidden in the case for reduced FAN noise level
Direction of air flow	Front to rear
Bridged configuration ability	yes
Remote	-
Weight	9 Kgs	11.6 Kgs
External dimensions	19" rack 483 x 460 x 44mm (1RU)

* For detailed installation and technical support please contact to PKN Audio ( info@pknaudio.com )

Terms & Conditions: Prepayment by electronic transfer, buying from PKN Audio includes 2 years standard warranty. For special offers and extended warranty terms kindly contact us separately.

Prices and technical specifications are subject to change without prior notice.

** The amplifier shall survive 400Vac accidental connection (up to 400Vac) or mains surge without need of service. It shall turned-off by itself above 300Vac and keeps turned off until the mains falls bellow 290Vac to the normal operation range.
