XD Series Digital Power Amplifiers


Main Features

- High output power and high efficiency
- Advanced high frequency switching technology
- Small size, low weight, ideal for touring applications
- Built-in limiter
- Intelligent protective functions
- High frequency resonanat power supply with active PFC function
- Wide mains voltage operation range

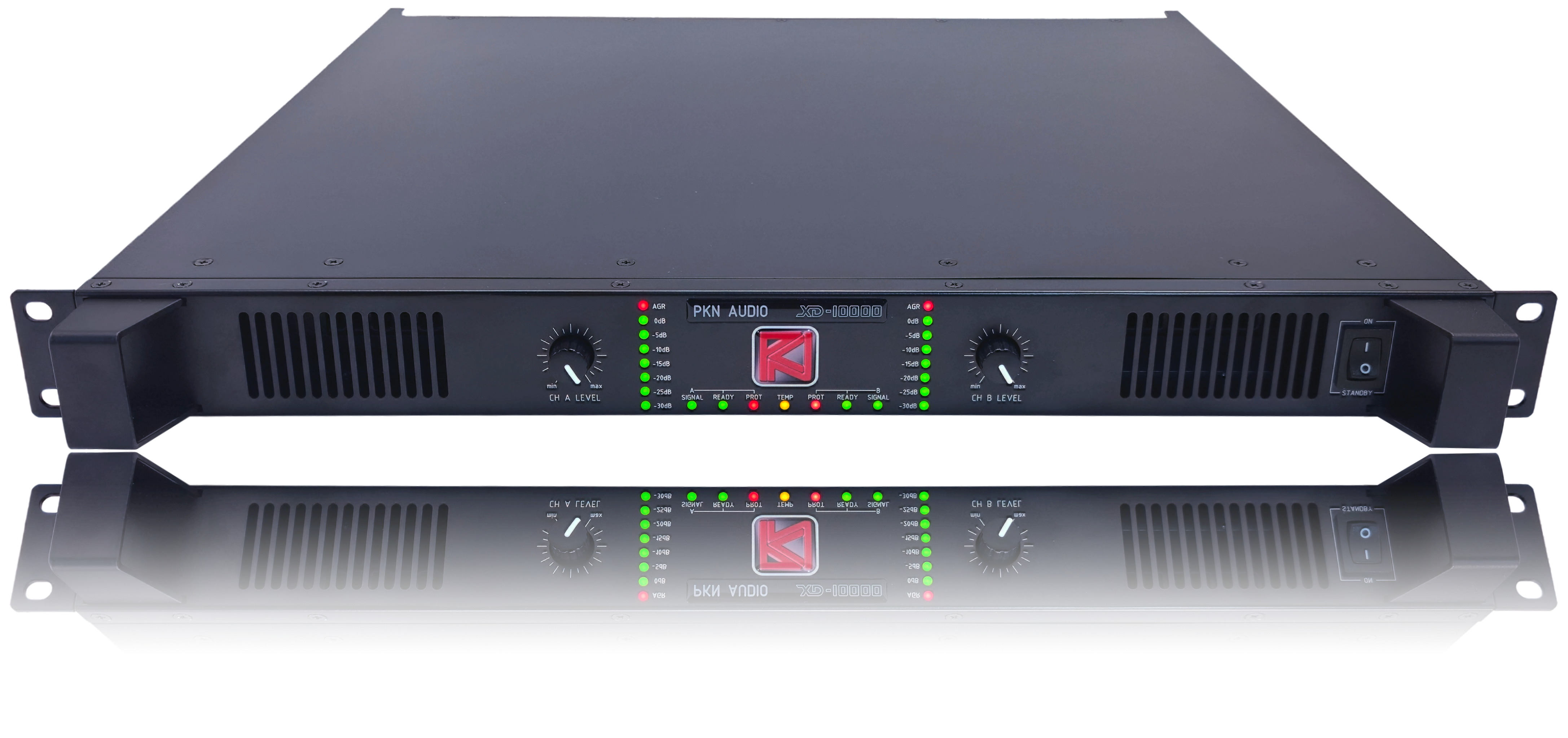

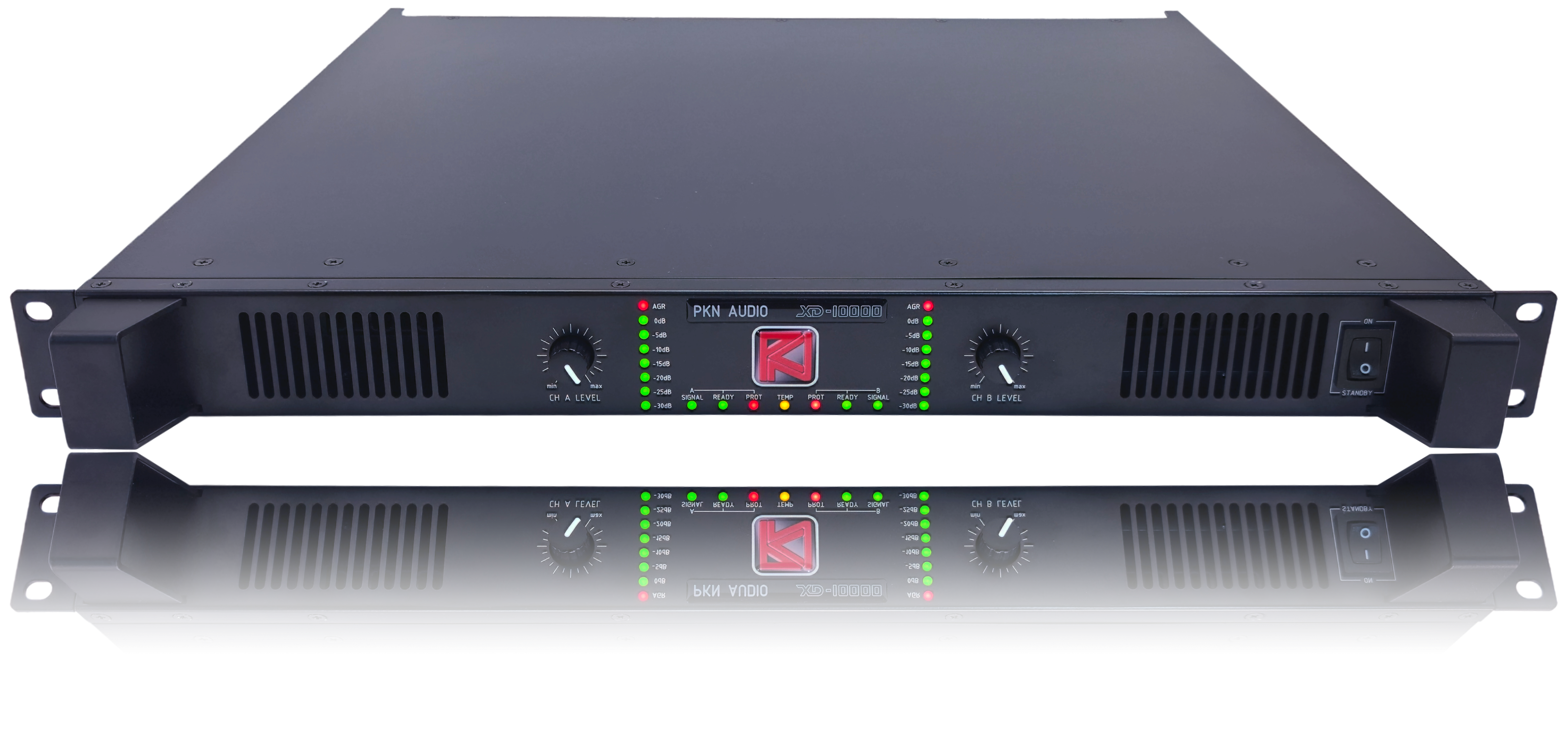

- Two LED bars display output levels
- Embedded microcontroller
- Rugged steel chassis
- Two knobs for level settings
- Easy portable / Ideal for touring applications



 Downloads



Products Table



Model
4 Ohms
8 Ohms
Price ex VAT Price inc +27% Hungarian VAT
XD 2500
2 x 1300 W
2 x 700 W
858
1090
XD 4000
2 x 2100 W
2 x 1300 W
1122
1425
XD 5002 2 x 1800 W 2 x 980 W 1188
1509
XD 6000
2 x 3650 W
2 x 1900 W
1309
1662
XD 10000
2 x 5000 W 2 x 2500 W 1600 2032

See XD series products in the PKN Shop >>


We offer free shipping in Europe*

Technical Specifications


Parameter XD2500 XD4000 XD 5002 XD6000 XD 10000 New!
Power requirements
160V - 270VAC, (50-60Hz)
Max. Power Consumption 2600W 5500W 5650W 7900W 8000W
Soft starting
yes
Power Supply
High frequency resonant includes active PFC
Mains connection
Neutrik Powercon
Working temperature range
0 - 40C
Storage temperature range
-25C - 60C
Output power @ 16 Ohms 2 x 320W
2 x 680W 2 x 490W 2 x 1000W
2 x 1300W
Output power @ 8 Ohms 2 x 700W
2 x 1300W 2 x 980W 2 x 1900W 2 x 2500W
Output power @ 4 Ohms 2 x 1300W 2 x 2100W 2 x 1800W 2 x 3650W 2 x 5000W
Output power @ 2,6 Ohms 2 x 1900W 2 x 2000W 2 x 2600W 2 x 3000W 2 x 3200W
Output power @ 2 Ohms 2 x 1500W 2 x 1800W 2 x 3200W 2 x 3500W 2 x 3600W
Minimum load impedance
2 Ohms
Frequency (+/- 3dB, 8 Ohms)
5 Hz - 20 kHz

Slew rate 50V / us 60V / us 62V / us
Damping factor >400 >500
>600 >700
End Stages High Frequency semi soft switched PWM in balanced configuration

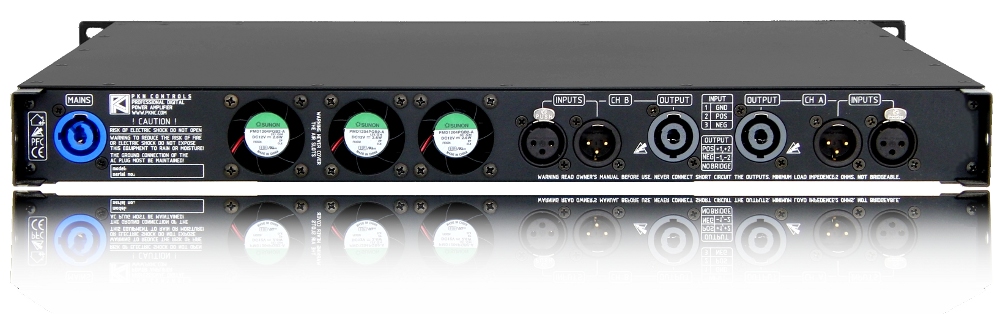

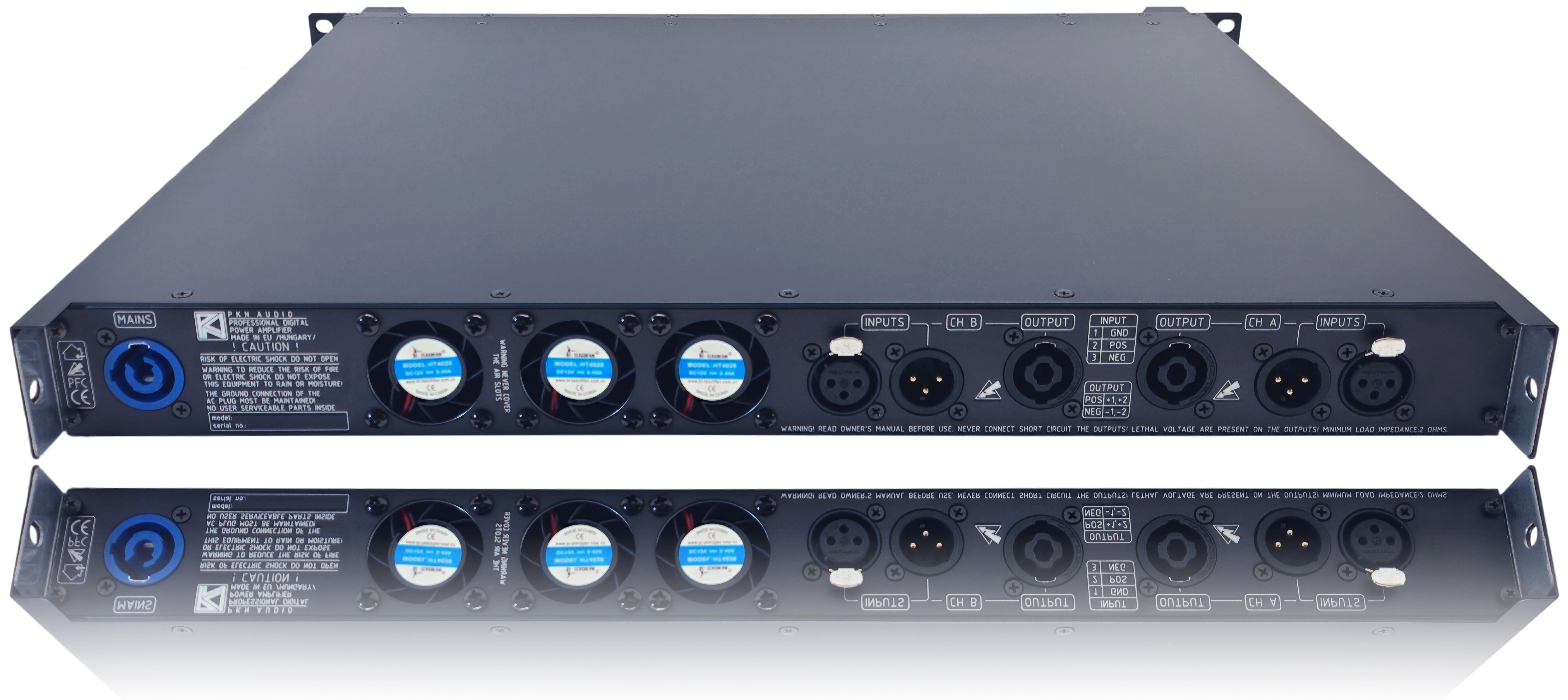

Output connections Four pole Neutrik SPEAKON (1+2+ in parallel, 1-2- in parallel
Signal to Noise ratio A-Weighted 20Hz - 20kHz
100 dB 102 dB 101dB 107 dB 105dB
Nominal sensitivity for maximum output level (balanced)
1.4V (rms) 1.7V (rms) 1.5V (rms) 1.7V (rms) 1.9V (rms)
Input Impedance (Refered to ground) 10 KOhms + 10 KOhms (+/- 1%)
Input terminals Neutrik XLR
Built in Limiter yes
Output level meter LEDbar, status LEDs (AGR, Short, Temp, Protect, Ready)
Protections Short circuit, Overload,Low impedance,Thermal, DC fault
Cooling Forced air cooling with regulated DC fans
Direction of air flow Front to rear
Weight 8 Kgs
9 Kgs
9.1Kgs 9,5 Kgs
9,6Kgs
External dimensions
19" rack 483 x 440 x 44mm (1RU)


 * For detailed installation and technical support please contact to PKN Audio ( info@pknaudio.com ) | We offer free shipping in the European Union above order value of EUR2000.

Terms & Conditions: Prepayment by electronic transfer, buying from PKN Audio includes 2 years standard warranty. For special offers and extended warranty terms kindly contact us separately. Prices and technical specifications are subject to change without prior notice.
