Description

The DMP 4X4R is a capable DSP enabled Matrix Processor, utilizing 4 analog inputs and outputs via XLR connectors, with the addition of 4 (or optionally 8*) digital inputs and outputs through ethernet.

All 4 inputs can be used selectively to directly power any device that uses +48V Phantom power (condenser microphones, active DI-boxes etc.).

Our DSP Matrix Series devices, including DMP 4X4R, natively support AES67, ST2110 and RAVENNA protocols, and they are able to transmit lossless, ultra-low latency digital audio streams over a local area network (LAN) with Layer 3 capabilities, which can interconnect even with other mainstream AoIP devices (such as QSC, Dante, Dolby, etc.) as well.

These features are realised in the same ecosystem, and can be managed remotely from the PKN Audio DSP Controller Software where you can customize every DSP feature, along with analog/digital audio matrix routings.

Main Features

- 1RU size and multiple powering options, ensuring flexibility in various installation scenarios
- Advanced Digital Signal Processing Features
- 4 XLR inputs with +48V Phantom Power capability, suitable for a wide range of audio sources
- 4 (or 8*) Digital inputs and outputs via Ethernet, enabling seamless integration into modern audio networks
- AES67 Digital audio stream receiving and sending capabilities (Unicast, Multicast streaming)
- PKN Audio DSP Controller Software compatibility

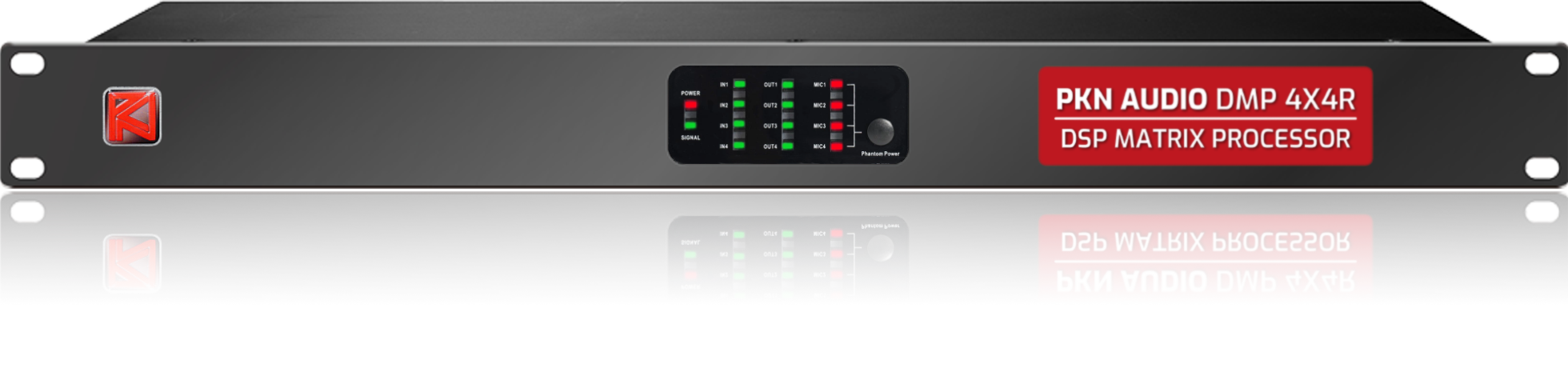

- Front display, showing power up state, input and output signals and Phantom Power state
- Phantom Power selector button, for quick setup
- Digital volume and input sensitivity control
- 20 DSP presets Via software

*Optional 8 digital inputs and outputs are available only with 48kHz sampling rate.
