Description

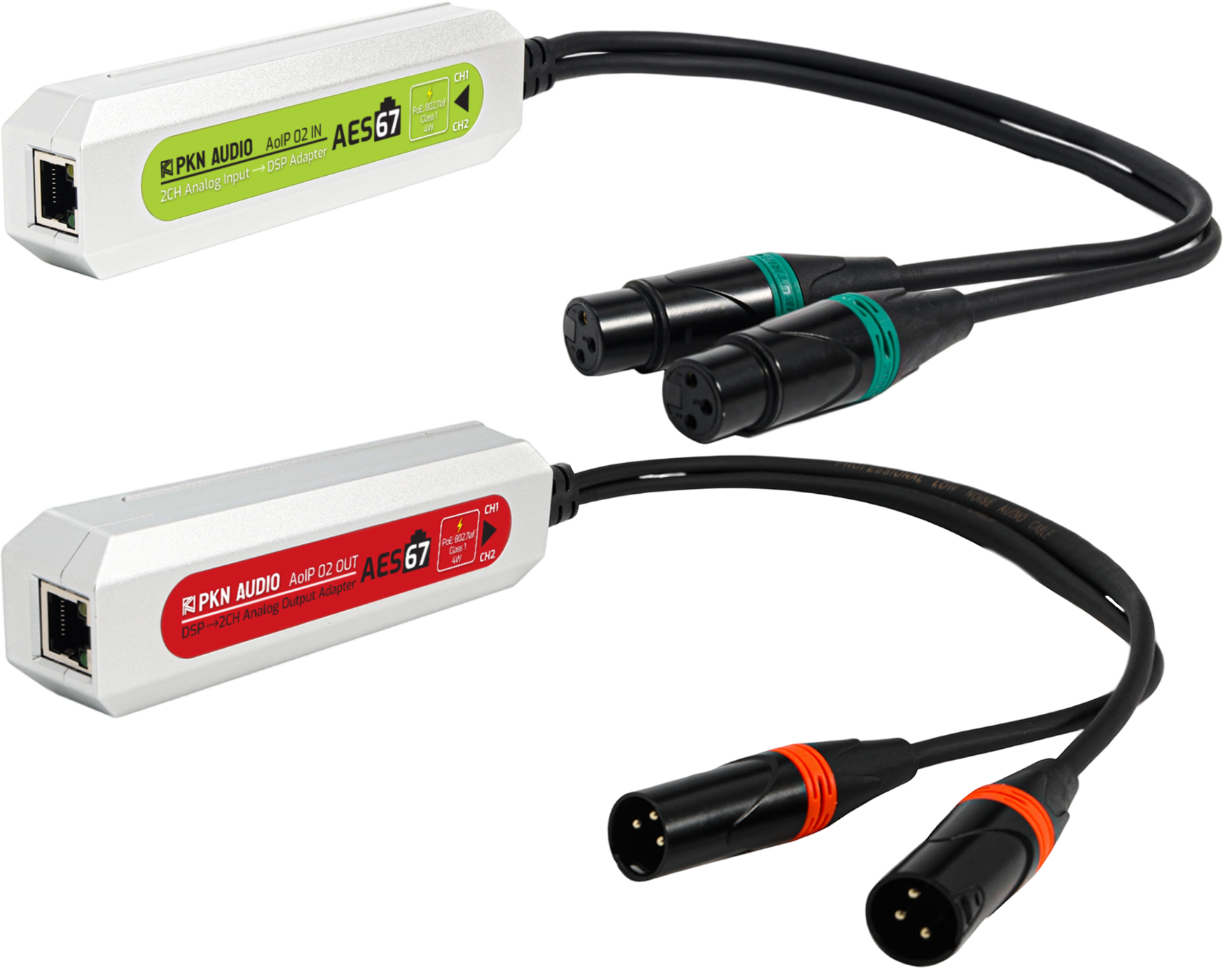

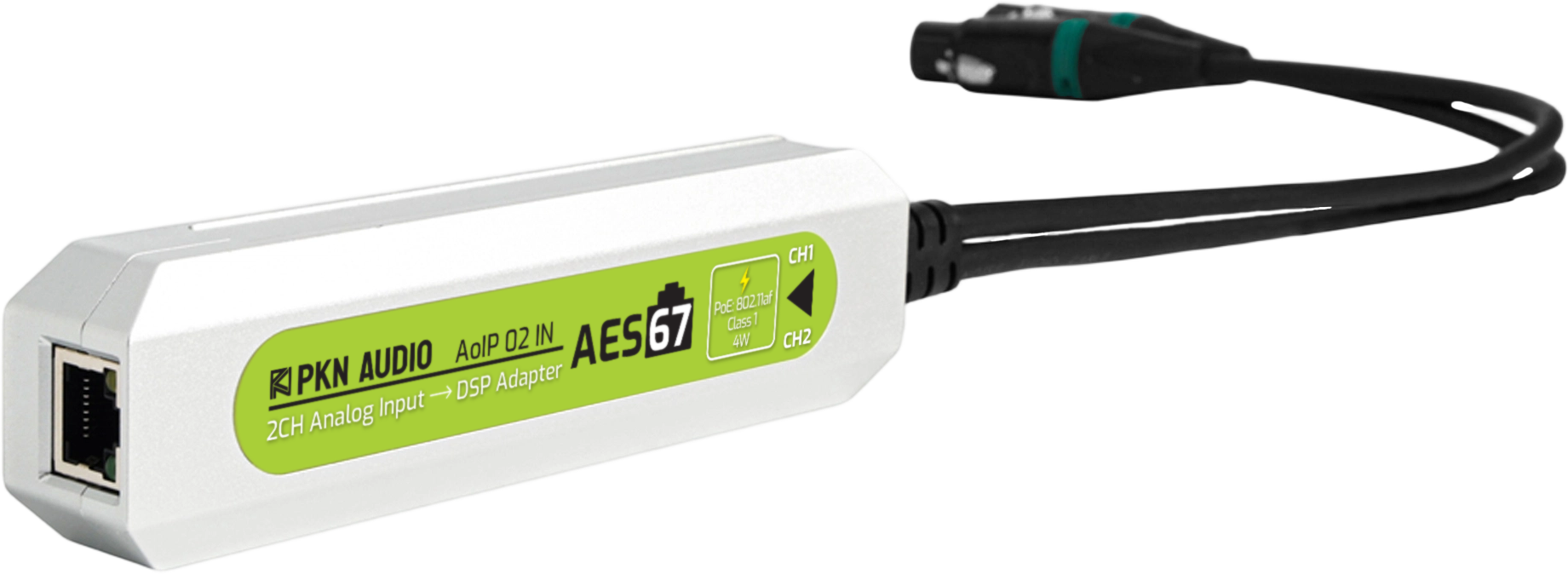

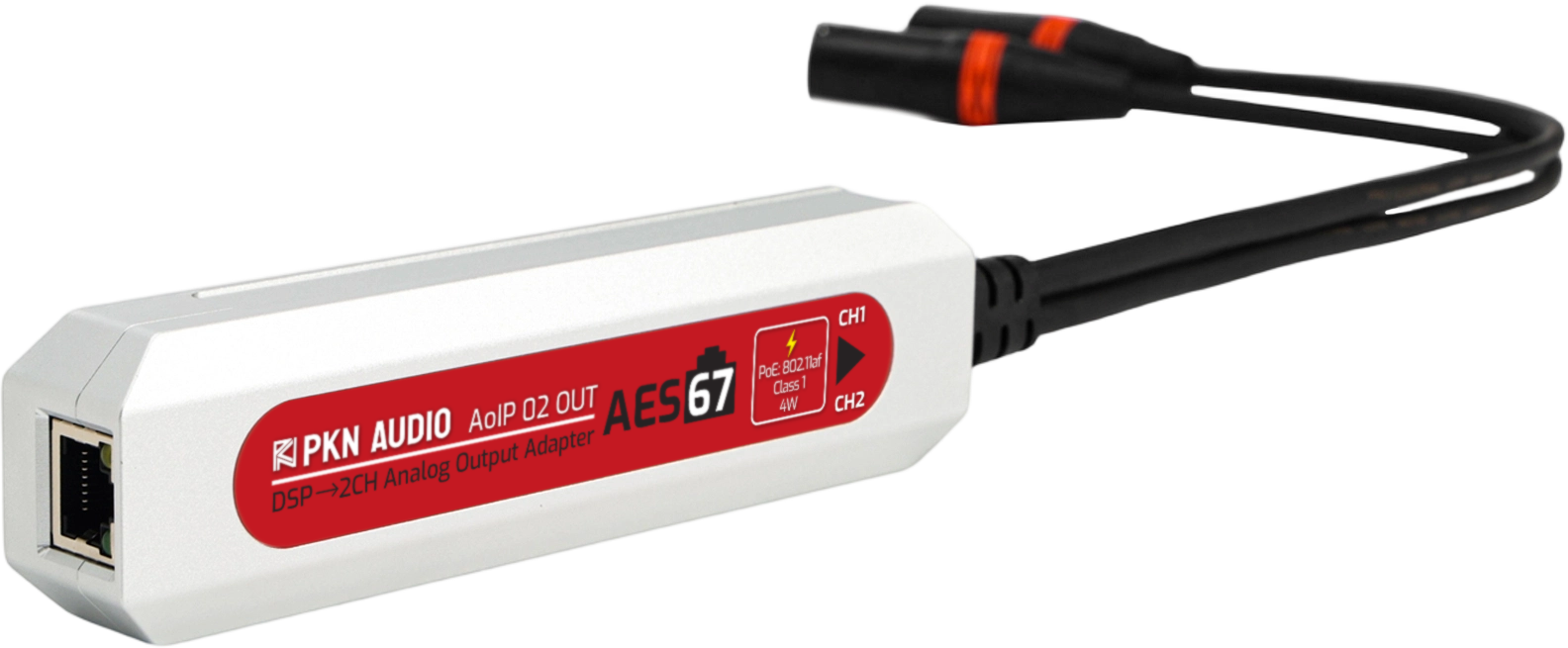

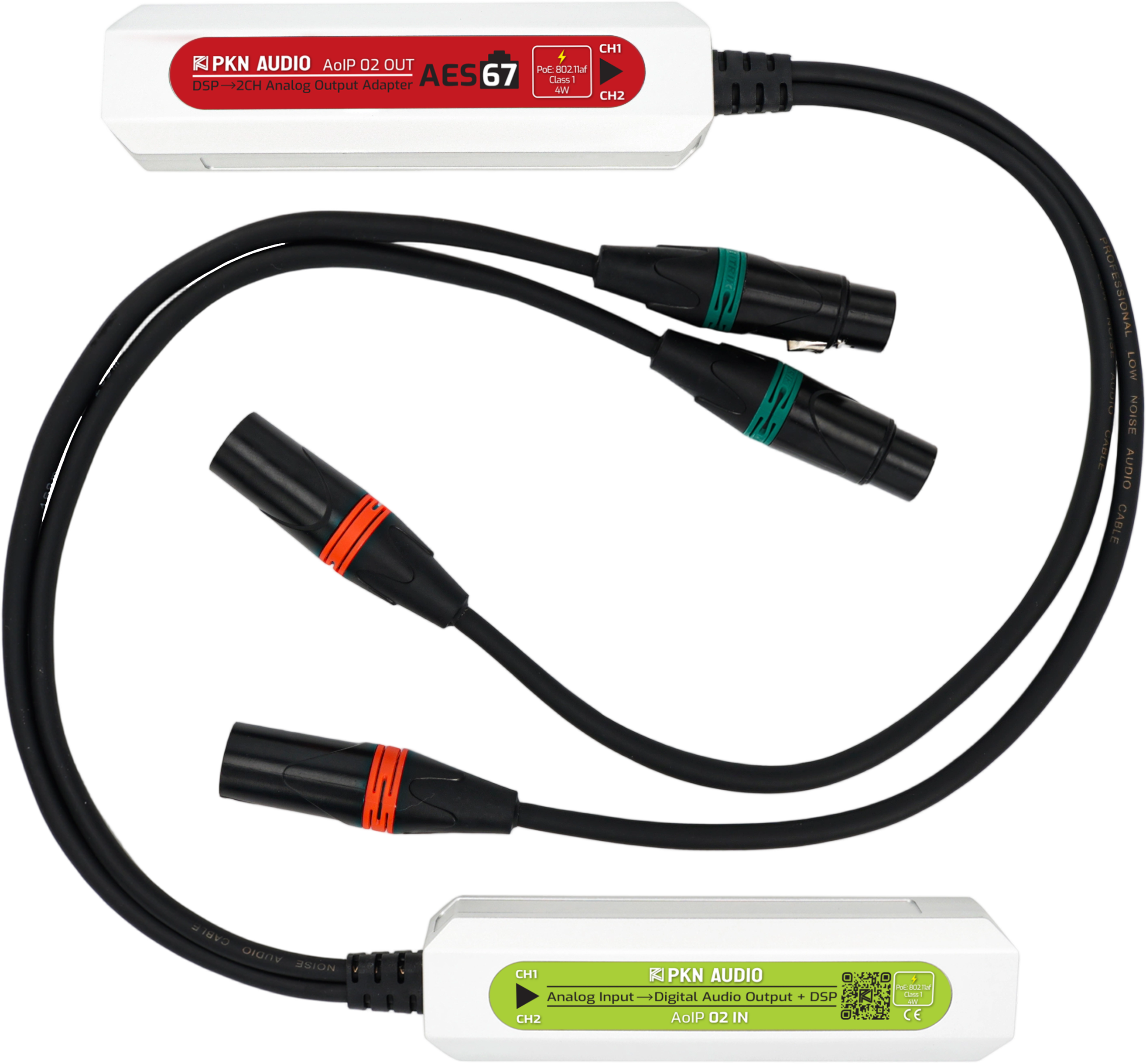

The AoIP 02 IN and AoIP 02 OUT I/O adapters are a perfect choice for any scenario where you could need high quality analog-to-digital, or digital-to-analog audio signal conversions.

Our DSP Matrix Series devices, including AoIP 02 IN & OUT, natively support AES67, ST2110 and RAVENNA protocols, and they are able to transmit lossless, ultra-low latency digital audio streams over a local area network (LAN) with Layer 3 capabilities, which can interconnect even with other mainstream AoIP devices (such as QSC, Dante, Dolby, etc.) as well.

These features are realised in the same ecosystem, and can be managed remotely from the PKN Audio DSP Controller Software where you can customize every DSP feature, along with analog/digital audio matrix routings.

Main Features

- Compact size, no need for external power supply
- Plug-n-Play with only PoE (Power over Ethernet)
- High-quality, low-latency analog-to-digital (AoIP 02 IN) or digital-to-analog (AoIP 02 OUT) audio conversion
- Up to 32-bit depth with 96kHz sampling rate
- Advanced Digital Signal Processing Features
- 2 XLR Analog inputs (AoIP 02 IN) or outputs (AoIP 02 OUT)
- 2 (or optional 4*) channel digital audio inputs and outputs via Ethernet, enabling seamless integration into modern audio networks
- AES67 Digital audio stream receiving and sending capabilities (Unicast, Multicast streaming)
- PKN Audio DSP Controller Software compatibility
- Digital volume and input sensitivity control
- 20 DSP presets Via software

*Optional 4 digital inputs and outputs are available only with 48kHz sampling rate.
