XE Series Networkable Two Channel Professional Power Amplifiers
|

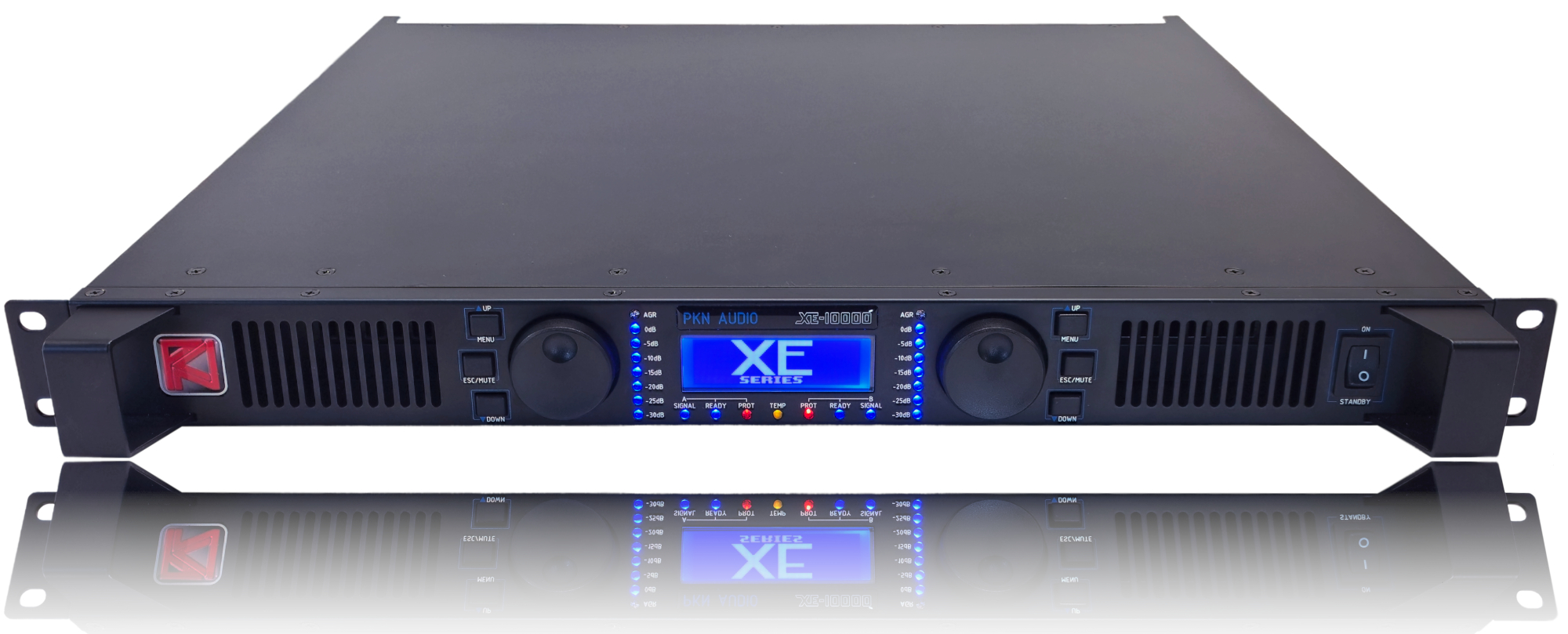

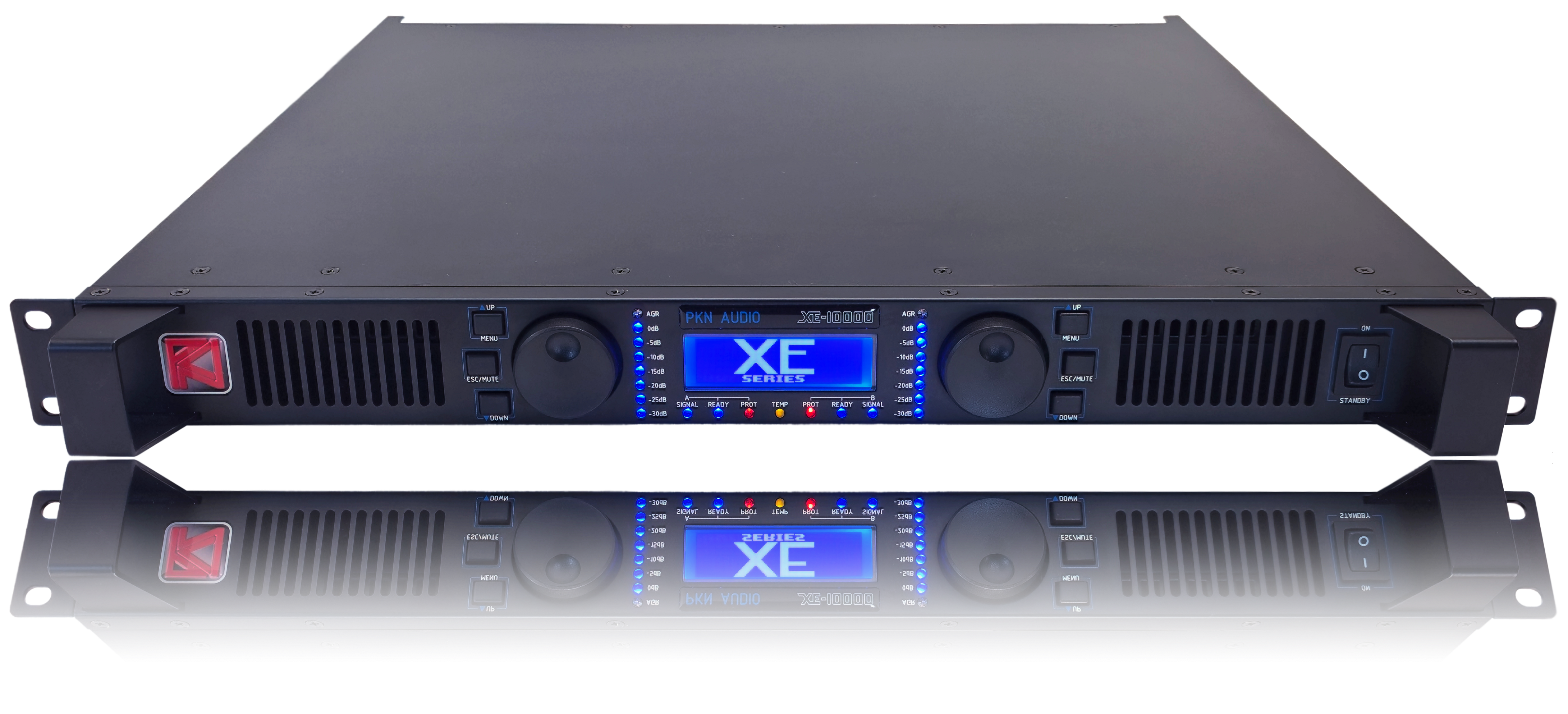

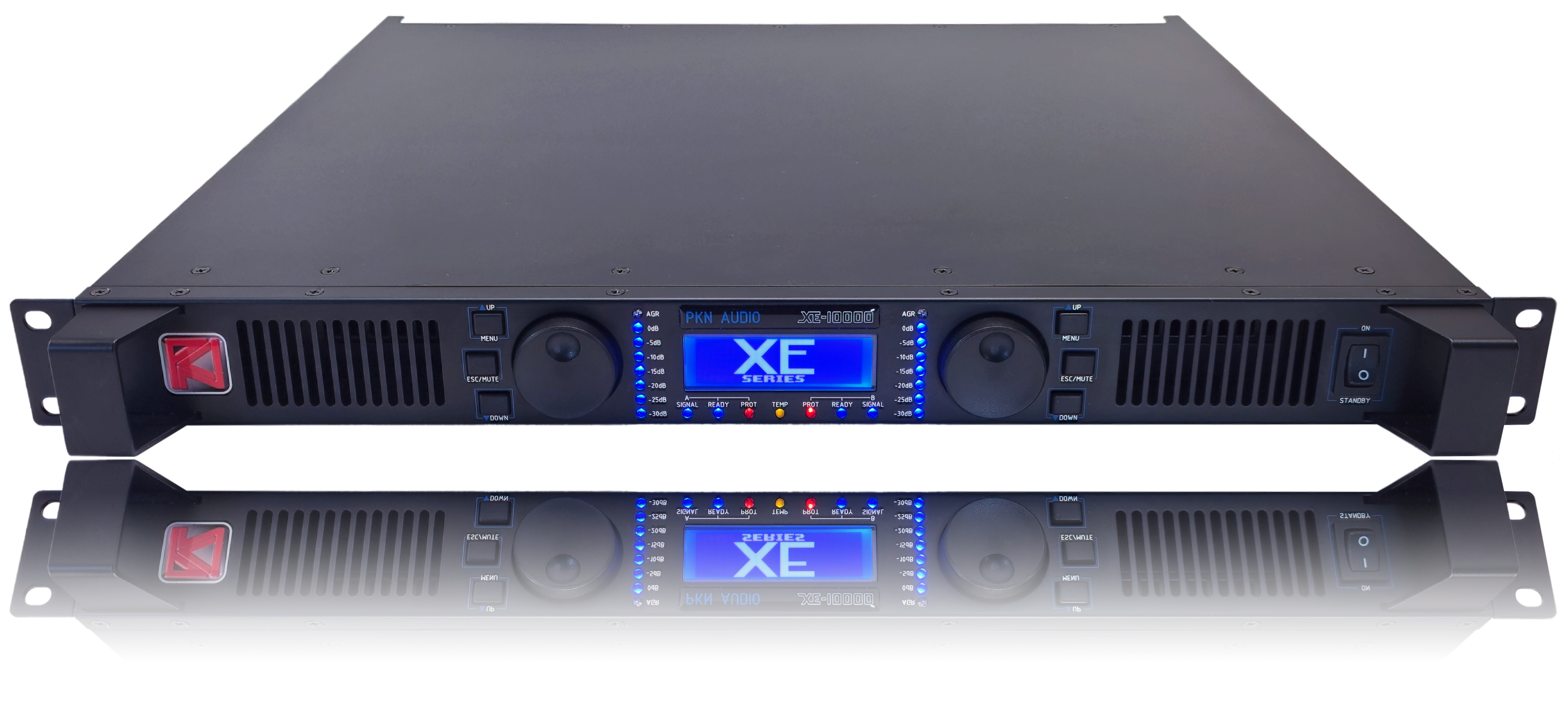

Description XE Series professional amplifiers are designed for portable and fixed installations. Five models are available: XE2500, XE4000, XE5002, XE6000 and XE10000. All type have graphics LCD display and two JOGs for tuning system parameters. The devices have internal webserver for full remote control over standard ETHERNET. There are two possible ways to use the remote control functions: with normal internet browser (JAVA based), and with PKNC control software. Main Features - High output power and
high efficiency |
New version for testing purposes. Password for the ZIP
file: tr9FuB1all3
As soon as your download
is complete, Two
stage switching power Video links: |
|
Products Table |
|
|
4 Ohms | 8 Ohms |
|---|---|---|
| XE 2500 |
2 x 1300 W |
2 x 700 W |
| XE 4000 |
2 x 2100 W |
2 x 1300 W |
| XE 5002 | 2x 1800 W | 2 x 980W |
| XE 6000 |
2 x 3650 W |
2 x 1900 W |
| XE 10000 | 2x 5000W | 2x 2600W |
|
|
Technical Specifications |
| Parameter | XE2500 | XE4000 | XE5002 | XE6000 | XE10000 New! |
|---|---|---|---|---|---|
| Power requirements |
160V - 270VAC,
(50-60Hz) |
||||
| Max. Power Consumption | 2600W | 5500W | 5650W | 7900W | 8000W |
| Soft starting |
yes |
||||
| Power Supply |
High frequency
resonant includes active PFC |
||||
| Mains connection |
Neutrik
Powercon |
||||
| Working temperature range |
0 - 40C |
||||
| Storage temperature range |
-25C - 60C |
||||
| Output power @ 16 Ohms | 2 x 320W |
2 x 680W | 2 x 490W | 2 x 1000W |
2x 1300W |
| Output power @ 8 Ohms | 2 x 700W |
2 x 1300W | 2 x 980W | 2 x 1900W | 2x 2600W |
| Output power @ 4 Ohms | 2 x 1300W | 2 x 2100W | 2 x 1800W | 2 x 3650W | 2x 5000W |
| Output power @ 2,6 Ohms | 2 x 1900W | 2 x 2000W | 2 x 2600W | 2 x 3000W | 2x 3200W |
| Output power @ 2 Ohms | 2 x 1500W | 2 x 1800W | 2 x 3200W | 2 x 3500W | 2x 3600W |
| Minimum load impedance |
2 Ohms |
||||
| Frequency (+/- 3dB, 8 Ohms) |
5 Hz - 22 kHz |
||||
| Slew rate | 50V / us | 60V / us | 62V /us | ||
| Damping factor | >400 | >500 | >550 | >600 | >700 |
| End Stages | High Frequency semi soft switched PWM in balanced configuration | ||||

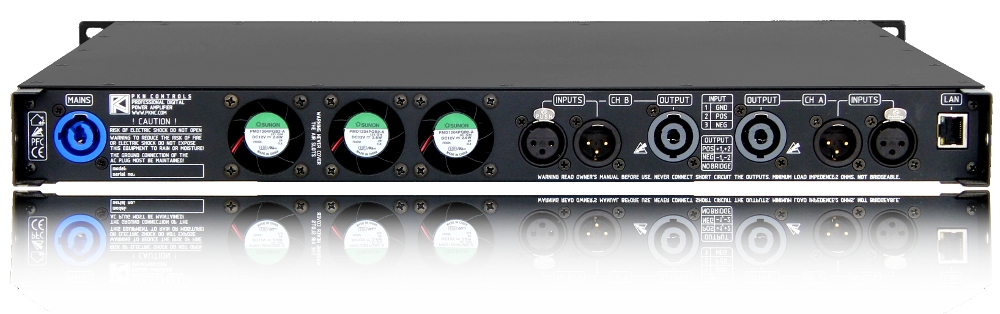

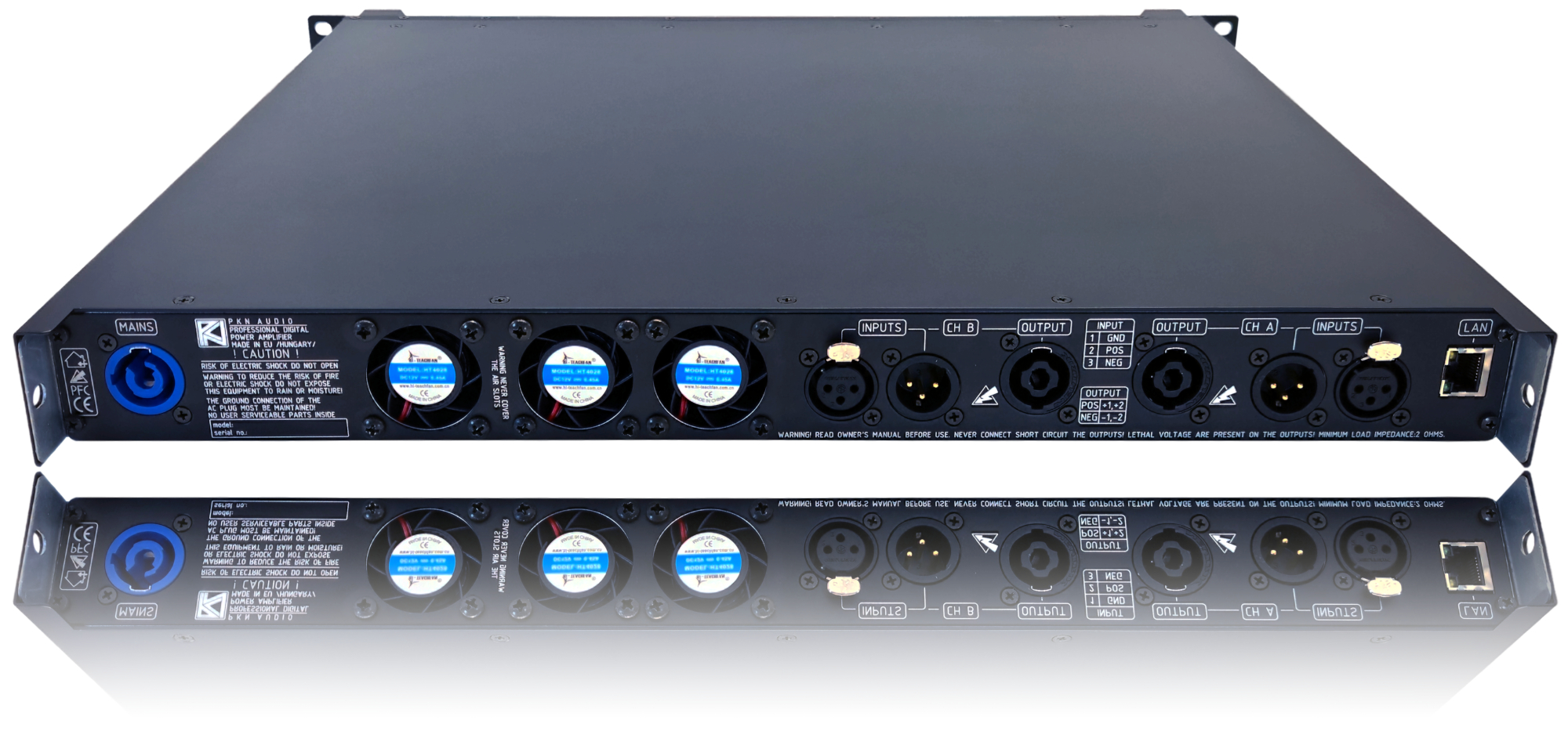

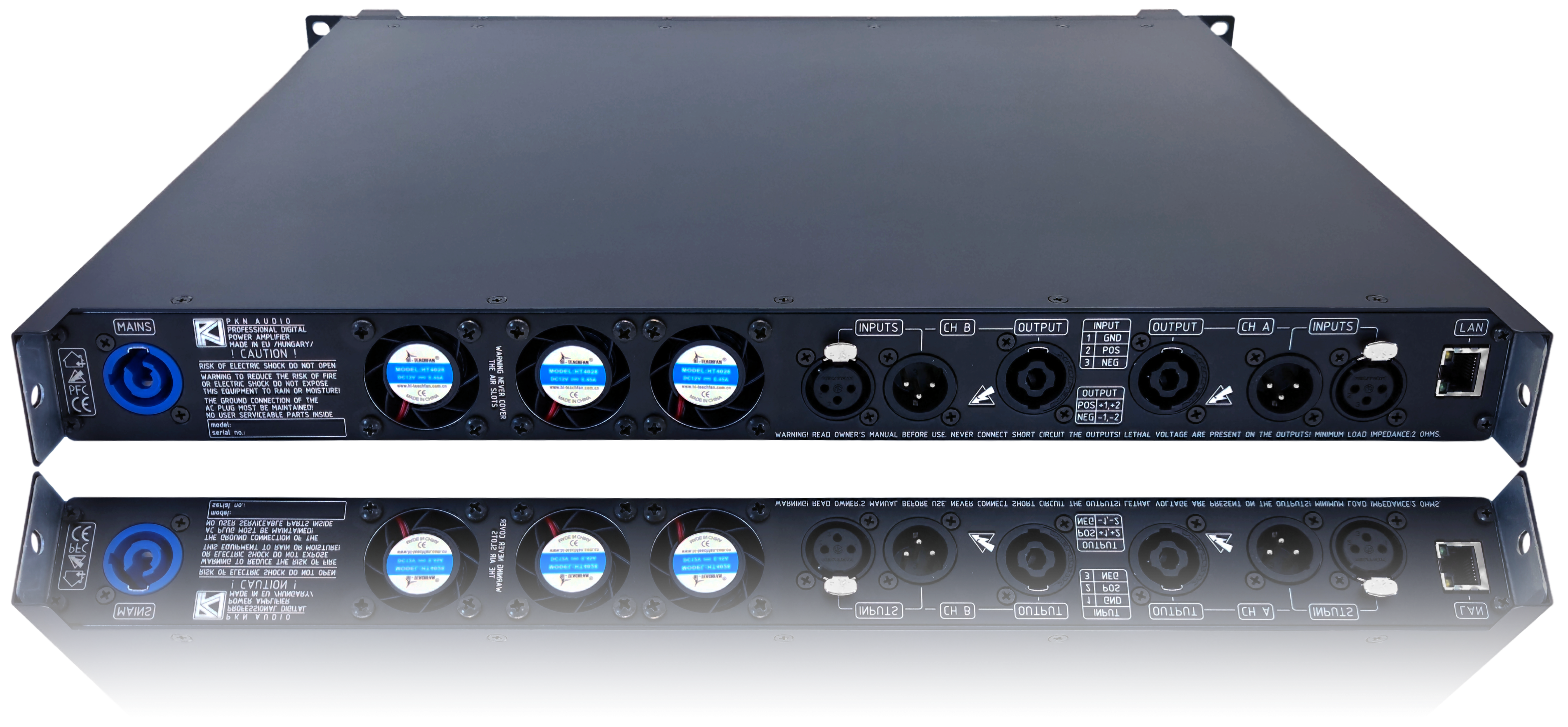

| Output connections | Four pole Neutrik SPEAKON (1+2+ in parallel, 1-2- in parallel | ||||
| Signal to Noise ratio A-Weighted 20Hz - 20kHz |
100 dB | 102 dB | 101dB | 107 dB | 105dB |
| Nominal sensitivity for maximum output level (balanced) |
1.4V (rms) | 1.7V (rms) | 1.5V (rms) | 1.7V (rms) | 1.9V (rms) |
| Input Impedance (Refered to ground) | 10 KOhms + 10 KOhms (+/- 1%) | ||||
| Input terminals | Neutrik XLR | ||||
| Built in Limiter | Programmable limiter ( 1V / Step ) | ||||
| Output level meter | LEDbar, status LEDs (AGR, Short, Temp, Protect, Ready) | ||||
| Display | Graphics LCD | ||||
| Control terminals | JOGS, buttons | ||||
| Volume control | Set by control JOG wheels or remote -95,5dB - 0dB (in 0,5 dB steps) | ||||
| Input sensitivity | -95,5db - 0dB (steps 0,5 dB) | ||||
| Limiter settings range | 10 - 100V |
10 - 155V |
10 - 126V | 10 - 170V |
10 - 200V |
| User profiles | 5 user profile | ||||
| Protections | Short circuit, Overload,Low impedance,Thermal, DC fault | ||||
| Cooling | Forced air cooling with regulated DC fans | ||||
| Direction of air flow | Front to rear | ||||
| Remote control | 10/100 Mbps Ethernet | ||||
| Weight | 8 Kgs |
9 Kgs |
9.1Kgs | 9,5 Kgs |
9,6Kgs |
| External dimensions |
19" rack 483 x 440 x 44mm (1RU) | ||||
|
* For detailed installation and technical support please contact to PKN Audio ( info@pknaudio.com ) Terms & Conditions: Prepayment by electronic transfer, buying from PKN Audio includes 2 years standard warranty. For special offers and extended warranty terms kindly contact us separately. Prices and technical specifications are subject to change without prior notice. |
|
|
